ISO 9239 ASTM E648 Flooring Radiant Panel Tester Combustion Performance Detection

Standard : ISO 9239-1,ISO 9239-2,ASTM E648

Application : Industrial

Control : Smart Control With English

Material : Stainless Steel

Test Chamber Dimensions : 1800 (L) X 1500 (W) X 2400 (H)

Power : AC220V±10%,50Hz

Name : Flooring Radiant Panel Fire Resistance Tester

Brand Name : GOLD

Model Number : GD-ASTM E648

Certification : ISO

Place of Origin : China

MOQ : 1set

Price : USD 4000-5000/set

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 5sets/Month

Delivery Time : 30days

Packaging Details : Standard Wooden Case

Electrical Control Cabinet Dimensions : 600 (L) X 1000 (W) X 1800 (H)

Contact Now

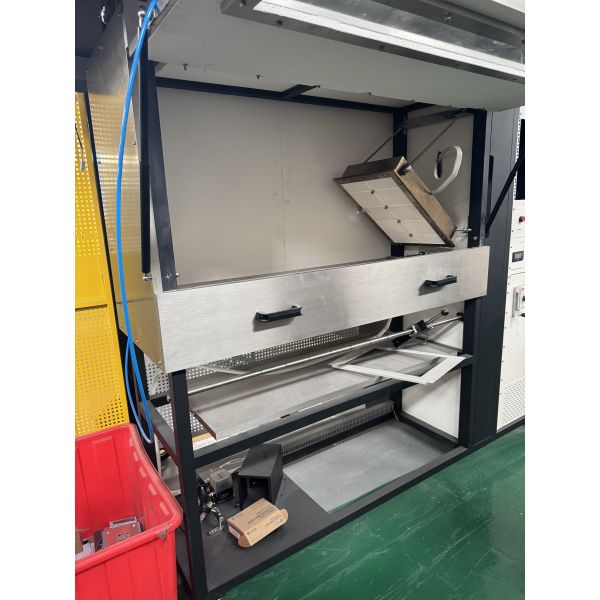

ISO 9239 ASTM E648 Flooring Radiant Panel Tester Combustion Performance Detection
The flammability testing system for flooring materials is based on the fundamental principles of the radiant heat source method, and the experimental methods and conditions are determined according to standards ISO 9239 and ASTM E648. The system evaluates the flammability of flooring material samples under laboratory conditions by observing and measuring the flame propagation of the samples exposed to an inclined radiant heat field.
ISO 9239 ASTM E648 Flooring Radiant Panel Tester Combustion Performance Detection
Compliance Standards
  • ASTM E648-15 Standard Test for Critical Radiant Flux of Floor Coating Systems Using Radiant Heat Sources
  • BS EN ISO 9239-1-2010 Tests on Fire Reaction of Floor Coverings - Determination of Flammability Using Radiant Heat Sources
  • GB/T11785-2005 Determination of Flammability of Floor Coverings - Radiant Heat Source Method
Technical Specifications
Component Specification
Specimen Fixture Made of L-shaped refractory stainless steel with a thickness of (2.0±0.1) mm. The exposed surface dimensions of the specimen are (200±3) mm * (1015±10) mm.
Igniter A stainless steel igniter with inner diameter of 6 mm and outer diameter of 10 mm, featuring two rows of 0.7 mm diameter holes for flame distribution.
Propane Rotor Flow Rate Controlled at (3-30) L/min to ensure an ignition flame height of (0.3-3) L/min.
Flue Gas Exhaust Exhaust Velocity: 2.5±0.2 m/s; Exhaust Capacity: 39~85 m³/min; measured using a hot-wire anemometer with ±0.1 m/s accuracy.
Water-Cooled Heat Flux Meter Measurement Range: 0~15 KW/m²; Accuracy: ±0.2 Kw/m²; Response time: 0.2 seconds.
Temperature Sensor Two K-type stainless steel armored thermocouples, 3.2mm diameter, installed in test chamber and flue.
Radiation Pyrometer Testing range: (480~530)℃ (blackbody temperature), accuracy: ±0.5℃, positioned approximately 1.4m from radiation plate.
ISO 9239 ASTM E648 Flooring Radiant Panel Tester Combustion Performance Detection
Key Features
  • Stainless steel test chamber with front-opening door design for easy cleaning
  • Calcium silicate board inner walls for high-temperature and corrosion resistance
  • Stainless steel fume hood above combustion test chamber
  • 300mm x 450mm porous ceramic heat radiation plate at 30-degree angle
  • T-type porous burner with cylinder-driven mechanism for sample ignition
  • Optical system with 2900 ± 100 ppm capacity light source and silicon photodiode
  • Computer-controlled shutter system for easy calibration
  • Rotor flow meter for precise flame height adjustment
  • Digital display propane mass flow meter for radiant panel gas control
  • Built-in blower with Venturi mixture for test gas supply
  • SB water-cooled heat flow meter with 0-50 kW/m² range and ±2% accuracy
  • Portable cooling water source requiring no external connection
  • Computer software for real-time monitoring of heat radiation flux, smoke density, and wind speed
  • 15-inch industrial touchscreen computer for complete test process monitoring
